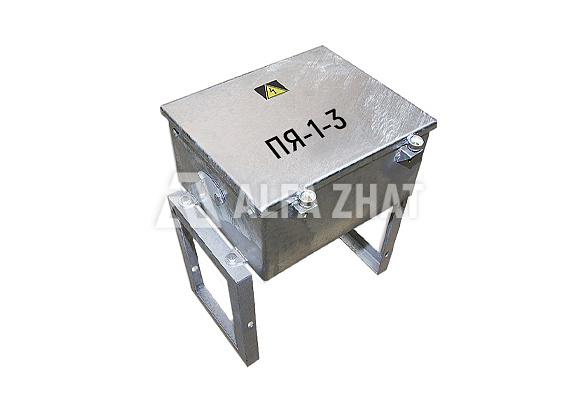

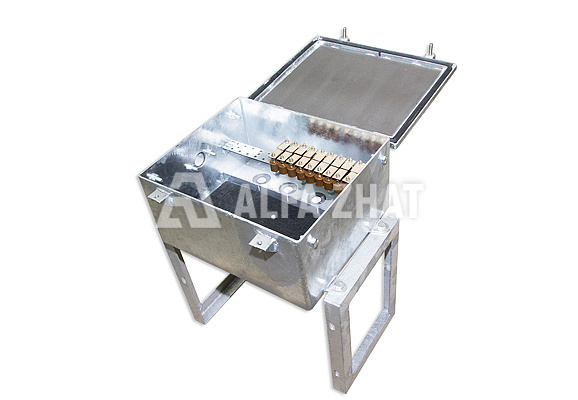

Galvanized track boxes PYa-1-3
Galvanized track boxes PYa-1-3
Galvanized track boxes PYa-1-3
Galvanized track boxes PYa-1-3

Galvanized track boxes PYa-1-3

For installation of transformers, relays, signal cables termination, connecting track circuit devices to rails using jumpers.
Make request
FEATURES

Drawing

Filling

Weight

151С-04-00-000-02

4 two-pin terminals and one
12-pin terminal
1 set of jumpers, without bases

36.4 kg

151С-04-00-000-08

4 two-pin terminals and one
12-pin terminal
1 set of jumpers, 2 bases

43.1 kg

151С-04-00-000-14

4 two-pin terminals and one
12-pin terminal
2 sets of jumpers, without bases

37.3 kg

151С-04-00-000-20

4 two-pin terminals and one
12-pin terminal
2 sets of jumpers, 2 bases

44 kg

151С-04-00-000-26

4 two-pin terminals and one
12-pin terminal
without jumpers, without bases

35.5 kg

151С-04-00-000-32

4 two-pin terminals and one
12-pin terminal
without jumpers, 2 bases

42.2 kg

DESCRIPTION
Using galvanized track boxes PYa-1-3, transformers, relays, small-sized resistors are installed, as well as the signal cable termination, track circuit devices are connected to the rails using jumpers.

The body of the product is made of high quality sheet steel. It has an anti-corrosion coating made by hot-dip galvanizing.

Advantages:

  • Dustproof

  • Corrosion resistance

  • Profile cover plate gasket

  • Polymer shelf

  • Anti-condensation coating of the inner surface of the cover plate

  • Extended service life

  • Reduced weight compared to cast iron equivalent


Parameters:

  • Classification group MS3 according to GOST R 55369-2012 - according to the allowable mechanical impacts

  • Class 01 according to GOST 2.007.0-7 by the method of protecting a person from electric shock

  • Climatic design UHL1 in accordance with GOST 15150-69

  • Operating temperature: -60°C to +65°C


Alfa-ZHAT guarantees the lowest price for galvanized track boxes PYa-1-3.

Delivery to any region of Russia and the CIS!
