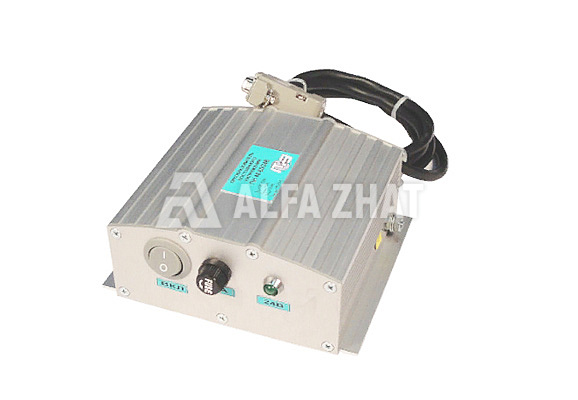

Dc-to-dc converter PN 48-60/24 is used for operations on Russian Railways; it transfers input-and out voltage data to the Integrated monitoring and administration system.
| input volt | 36-72 V |
| output voltage | 24 V |
| full-load amperage | 6,25 А |
| measures | 154х80х35 mm |
| weight, equal to or less than | 0,5 кg |
Dc-to-dc converter PN 48-60/24 is used for operations on Russian Railways.
Equipment purpose: rail mode fixed radio station reserve dc power supply; transfer of input-and out voltage data to the Integrated monitoring and administration system.
Predominant features of dc-to-dc converter PN 48-60/24:
thermally conductive material body; it supports heat exchange with surrounding air
flameproof and fire safe equipment; mechanical strength while in shipment
input cable storage casing is made of low flammable work material
conversion device has overcurrent protection and short-circuit failure protection
maintenance work is not needed
We deliver the equipment around the country and the CIS region!
