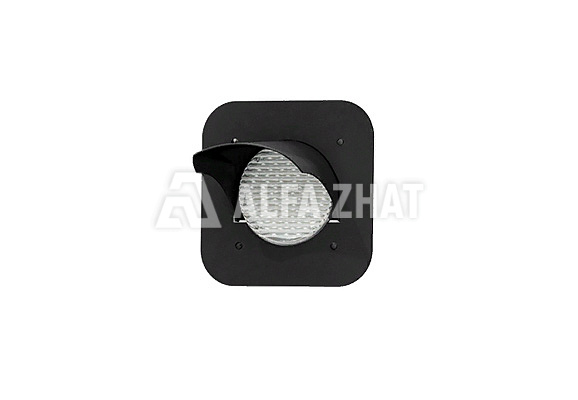

Lunar-white signal color railway traffic light colored signal unit NKMR.676636.003-01 SP3-1 and SP3-2 types, SKMTR Code 3185640313, NKMR.676636.003-01. Rack with background gate and sunshield are included.
| AC power supply 50 Hz, source voltage | 10,5-12 V |
| DC power supply, source voltage | 10,5-12 V |
| Power consumption, max | 25 W |
| Light hole diameter, min | 200 mm |
| Signal color | lunar-white lights |
| Error-free running time, min | 50000 h |
| Working time, min | 20 years |
| Weight, max | 9 kg |
| Axial lighting force, min | 260 cd |
| SKMTR code | 3185640313 |
| Drawing № | NKMR.676636.003-01 |
| Used in following types of railway traffic lights signal units | SP3-1, SP3-2 |
Lunar-white signal color railway traffic lights signal unit NKMR.676636.003-01 is designed and suitable for railway-crossings runningorder let know alarm application for vehicles and pedestrian circulation.
Railway traffic light signal unit NKMR.676636.003-01 is permutable with customary electric bulb light signal head.
Predominant features of railway traffic light colored light assembly NKMR.676636.003-01:
service life is 25 times longer than multi-lens signals` working life
a few tens of self-supporting light-emitting-diode arrays are used instead of electric incandescent lamp; catastrophic failures danger is eliminated
railway traffic light spurious signal occurrence is excluded
diffuser glass is resistant to mechanical damage
Contents of delivery:
lunar-white signal color railway traffic lights colored light assembly NKMR.676636.003-01
rack with background gate
sunshield
spot label
technical features and user's guide
Railway traffic lights colored light assembly NKMR.676636.003-01 is meant for operation in temperate- and frigid climate at temperatures from - 60°С to +55° С. Vapor concentration ratio - 93±3% by 25±10°C.
