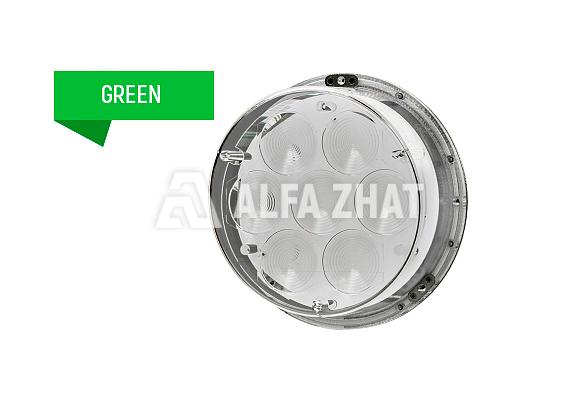

Green signal colour LED light-optical high colour light signal system NKMR. 676636.030 ТU. Wattage 15W. NKMR. 676636.030-02, SKMTR Code 3185620808.
| Voltage pattern, AC current | 10,5-12 V |
| Wattage | 15 W |
| Error-free running time, equal to or greater than | 50000 h |
| Working time of the system, min | 15 years |
| Axial lighting force, min | 2600 cd |
| Outlet port diameter | 210 mm |
| Signal colour | green |
| Weight, less than or equal to | 6 kg |
| SKMTR code | 3185620808 |
| Drawing № | NKMR. 676636.030-02 |
Green signal colour LED light-optical high colour light signal system NKMR. 676636.030 ТU.
Functionality: colour alarm application for safe railway operation and drilling.
This kind of equipment cannot be used as the changing for the cast-iron housing multi-lens signal system equipped with the electric incandescent lamps. They are set into the modern high colour light signal bodies per cable gland with the use of LED systems.
Contents of delivery:
green signal colour LED light-optical ground light signal system NKMR.676636.030 ТU-1 piece
outfit installation`s label -1 piece
installation`s instruction - 1 piece per a parcel of equipment
Advantages of the LED ground light signal system over multi-lens signal:
optical source is 25 times more reliable;
2 times longer service life;
operating and support costs are 10-15 times less;
