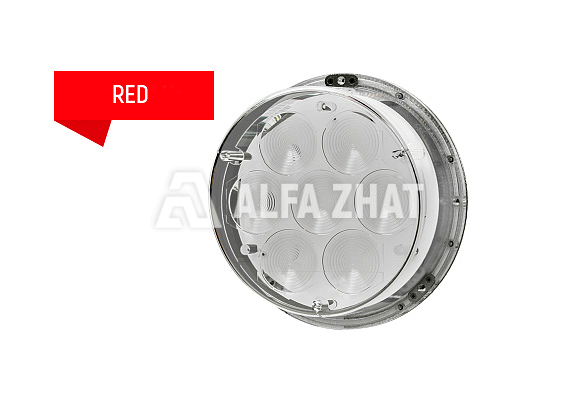

Red signal colour LED light-optical alternating current/direct current high colour light signal system NKMR. 676636.030 ТU
NKMR | 676636.058-01

Red signal colour LED light-optical alternating current/direct current high colour light signal system NKMR. 676636.030 ТU

Red signal colour LED light-optical alternating current/direct current high colour light signal system NKMR. 676636.030 ТU. SKMTR Code 3185642093, NKMR.676636.058-01. The weight of the system doesn`t exceed 6 kg.

Make request
FEATURES
Connection voltage, source strength
Alternating-current (normal power supply) 10,5-12 V, 15W
Alternating-current (back supply) 10,5-12 V, 25W
Error-free running time, equal to or greater than 50000 h
Working time of the system, min 15 years
Axial lighting force, min 2100 cd
Outlet port diameter 210 mm
Signal colour red
Weight, less than or equal to 6 kg
SKMTR code 3185642093
Drawing № NKMR. 676636.058-01
DESCRIPTION
Red signal colour LED light-optical alternating current/direct current high colour light signal system NKMR. 676636.030 ТU.

Functionality: colour alarm application for safe railway operation and drilling.

The equipment can be set into dual-fed high colour light signal body (normal power supply is alternating-current, back supply- electric power storage). The system is to be plugged into electric power storage 10,5-12 V with watt consumption 25 W to be used in traffic light system with a back supply.

This kind of equipment cannot be used as the changing for the cast-iron housing multi-lens signal system equipped with the electric incandescent lamps. They are set into the modern high colour light signal bodies per cable gland with the use of LED systems.

Contents of delivery:


  • Red signal colour LED light-optical ground light signal system

  • installation`s instruction

  • outfit installation`s label


Advantages of the LED ground light signal system over multi-lens signal:

  • optical source is 25 times more reliable;

  • 2 times longer service life;

  • operating and support costs are 10-15 times less;

  • anti-vandal functionality.
