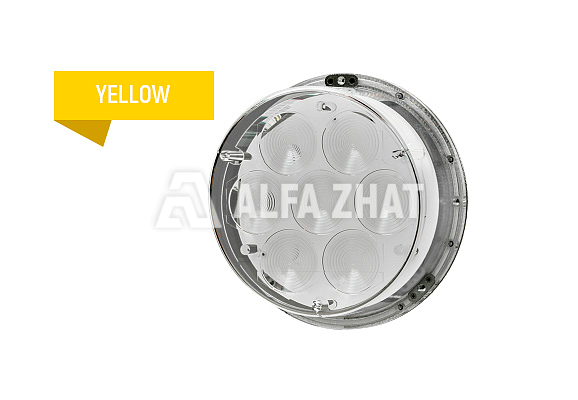

Yellow signal colour LED light-optical high colour light signal system NKMR. 676636.030 ТU. NKMR. 676636.030. SKMTR Code 3185620807.
| Voltage pattern, AC current | 10,5-12 V |
| Wattage | 15 W |
| Error-free running time, equal to or greater than | 50000 h |
| Working time of the system, min | 15 years |
| Axial lighting force, min | 4350 cd |
| Outlet port diameter | 210 mm |
| Signal colour | yellow |
| Weight, less than or equal to | 6 kg |
| SKMTR code | 3185620807 |
| Drawing № | NKMR. 676636.030 |
Yellow signal colour LED light-optical high colour light signal system NKMR. 676636.030 ТU.
Functionality: colour alarm application for safe railway operation and drilling.
This kind of equipment cannot be used as the changing for the cast-iron housing multi-lens signal system equipped with the electric incandescent lamps. They are set into the modern high colour light signal bodies per cable gland.
Contents of delivery:
Yellow signal colour LED light-optical ground light signal system – 1 piece
outfit installation`s label – 1 piece
installation`s instruction – 1 piece per a parcel
Advantages of the LED ground light signal system over multi-lens signal:
optical source is 25 times more reliable;
2 times longer service life;
operating and support costs are 10-15 times less;
