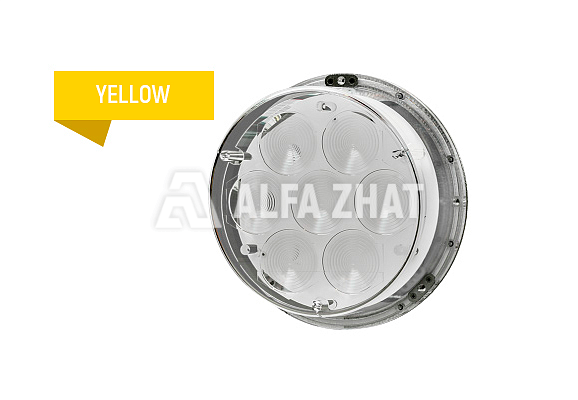

Yellow signal colour LED light-optical alternating current/direct current high colour light signal system NKMR. 676636.030 ТU. SKMTR Code 3185642092, NKMR. 676636.058.
| Connection voltage, source strength | |
| Alternating-current (normal power supply) | 10,5-12 V, 15W |
| Alternating-current (back supply) | 10,5-12 V, 25W |
| Error-free running time, equal to or greater than | 50000 h |
| Working time of the system, min | 15 years |
| Axial lighting force, min | 4350 cd |
| Outlet port diameter | 210 mm |
| Signal colour | yellow |
| Weight, less than or equal to | 6 kg |
| SKMTR code | 3185642092 |
| Drawing № | NKMR. 676636.058 |
Yellow signal colour LED light-optical alternating current/direct current high colour light signal system NKMR. 676636.030 ТU.
Functionality: colour alarm application for safe railway operation and drilling.
The equipment can be set into dual-fed high colour light signal body. The system is to be plugged into electric power storage 10,5-12 V with watt consumption 25 W to be used in traffic light system with a back supply.
This kind of equipment cannot be used as the changing for the cast-iron housing multi-lens signal system equipped with the electric incandescent lamps. They are set into the modern high colour light signal bodies per cable gland with the use of LED systems.
Contents of delivery:
Yellow signal colour LED light-optical ground light signal system
outfit installation`s label
installation`s instruction
Advantages of the LED ground light signal system over multi-lens signal:
optical source is 25 times more reliable;
2 times longer service life;
operating and support costs are 10-15 times less;
