Drawing No. | 676636.136÷141

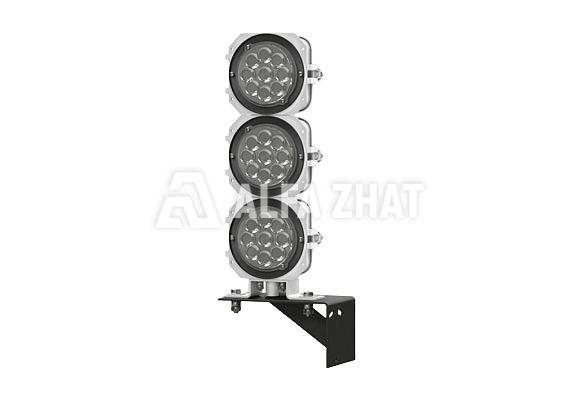

Tunnel light signals «Metro» with LED systems MT aperture 160 mm

«Metro» tunnel LED light signal with light unit and modern light-optical systems NKMR.676636.007TS, 160 mm in size.

Make request

Product card

FEATURES

Light intensity along the optical axis, red	50 cd
Light intensity along the optical axis, lunar white	70 cd
Light intensity along the optical axis, yellow	40 cd
Light intensity along the optical axis, green	100 cd
Light intensity along the optical axis, blue	10 cd
Relative air humidity	100%
Warranty period	36 months
Drawing No.	676636.136÷141

PRODUCTION OPTIONS

Drawing No.	Description
НКМР.676636.136	«Metro» tunnel light signal with a single-phase light unit (with LED system NKMR.676636.007TS)
НКМР.676636.136-01	«Metro» tunnel light signal with a single-phase light unit (with LED system NKMR.676636.007TS) (for limited space)
НКМР.676636.137	«Metro» tunnel light signal with a two-phase light unit (with LED system NKMR.676636.007TS)
НКМР.676636.137-01	«Metro» tunnel light signal with a two-phase light unit (with LED system NKMR.676636.007TS) (for limited space)
НКМР.676636.138	«Metro» tunnel light signal with a three-phase light unit (with LED system NKMR.676636.007TS)
НКМР.676636.138-01	«Metro» tunnel light signal with a three-phase light unit (with LED system NKMR.676636.007TS) (for limited space)
НКМР.676636.139	«Metro» tunnel light signal with a four-phase light unit (with LED system NKMR.676636.007TS)
НКМР.676636.139-01	«Metro» tunnel light signal with a four-phase light unit (with LED system NKMR.676636.007TS) (for limited space)
НКМР.676636.140	«Metro» tunnel light signal with a five-phase light unit (with LED system NKMR.676636.007TS)
НКМР.676636.140-01	«Metro» tunnel light signal with a five-phase light unit (with LED system NKMR.676636.007TS) (for limited space)
НКМР.676636.141	«Metro» tunnel light signal with a six-phase light unit (with LED system NKMR.676636.007TS)
НКМР.676636.141-01	«Metro» tunnel light signal with a six-phase light unit (with LED system NKMR.676636.007TS) (for limited space)

DESCRIPTION

«Metro» tunnel light signal with a light unit with LED systems MT NKMR.676636.007TS with an aperture of 160 mm is designed for installation in subways.

The scope of supply of «Metro» tunnel light signal shall include:

Tunnel LED systems MT or MT1.

The supporting bracket NKMR.304113.007 for fixing the light unit on the tunnel wall.

Advantages of Metro LED tunnel light signals over the lamp light signals:

The service life of LED systems is 25 times longer than that of light signals lamps.
Failures are excluded - instead of a single incandescent lamp, independent LEDs are used in light signals, that eliminates the possibility of a complete system failure.
Glass diffusers are impact resistant.
No false signals - filters are not used in light signals, so false signals arising from the reflection of spotlights are excluded.

Alfa-Zhat company offers to buy tunnel light signals for the underground at the best prices.

Delivery to any region of Russia and the CIS!
