| Volts alternating current | 10-12 V |
| Wattage, max | 25 W |
| Error-free running time, min | 50 000 hours |
| Service life, min | 20 years |
| Axial lighting force, min | 20 kd |
| Signal colour | blue |
| Diameter of the system | 200 mm |
| Drawing № | NKMR.676636.007-04 |
|
LED high colour light signal system for Underground Railroad (blue signal colour) |
1 pcs |
| Background shield | 1 pcs |
| Protective visor | 1 pcs |
| Product label | 1 pcs |
| Directions for use | 1 pcs per run of items |

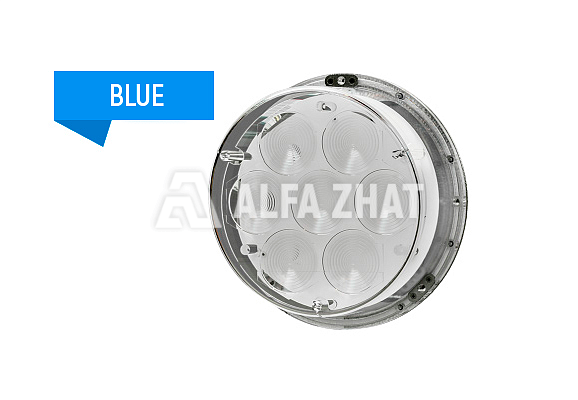

LED high colour light signal system with blue signal colour for Underground Railroad.
Functionality: safety ensuring, organization of service and of shunting operations.
The system is an alternative to lens systems with electric incandescent lamps.
High colour light signal system advantages (in comparison to lens systems with electric incandescent lamps):
25 times longer service life
system crashes are ruled out with certainty – instead of one lamp bulb 10s of independent of one another light-emitting-diode arrays are used
rub-out signal occurrence circumstance when spotlight in reflection is ruled out with certainty
high impact property of scatterer glasses
The system is compatible with light-out relay OSHM2-46 mode.
Given in technical conditions chromaticity coefficients are proved true by service of legal metrology (The All-Russian Research Institute for Optical and Physical Measurements Federal State Unitary Enterprise) measurement results.
