High colour light signal system for Underground Railroad; equipped with independent green signal colour light-emitting diode arrays. NKMR .676636.007-02. Service life of the system is min 20 years.
| Volts alternating current | 10-12 V |
| Wattage, max | 25 W |
| Error-free running time, min | 50 000 hours |
| Service life, min | 20 years |
| Axial lighting force, min | 250 kd |
| Signal colour | green |
| Diameter of the system | 200 mm |
| Drawing № | NKMR.676636.007-02 |

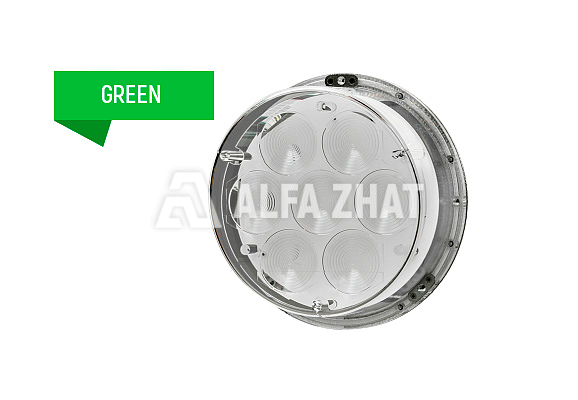

LED high colour light signal system MMz NKMR .676636.007-02 with green signal colour for Underground Railroad.
Functionality: safety ensuring, organization of service and of shunting operations by means of green colour position light signals.
The system is an alternative to lens systems with electric incandescent lamps.
Package contents:
LED high colour light signal system MMz NKMR .676636.007-02 for Underground Railroad (green signal colour) -1 pcs
background shield – 1 pcs
protective visor – 1 pcs
product label – 1 pcs
directions for use – 1 pcs per run of items
High colour light signal system advantages (in comparison to lens systems with electric incandescent lamps):
25 times longer service life
system crashes are ruled out with certainty – instead of one lamp bulb dozens 10s of independent of one another light-emitting-diode arrays are used
rub-out signal occurrence circumstance when spotlight in reflection is ruled out with certainty
high impact property of scatterer glasses
The system is compatible with light-out relay OSHM2-46 mode.
Given in technical conditions chromaticity coefficients are proved true by service of legal metrology (The All-Russian Research Institute for Optical and Physical Measurements Federal State Unitary Enterprise) measurement results.
LLC «Alfa-Zhat» offers to buy the high colour light signal systems for Underground Railroad low!
