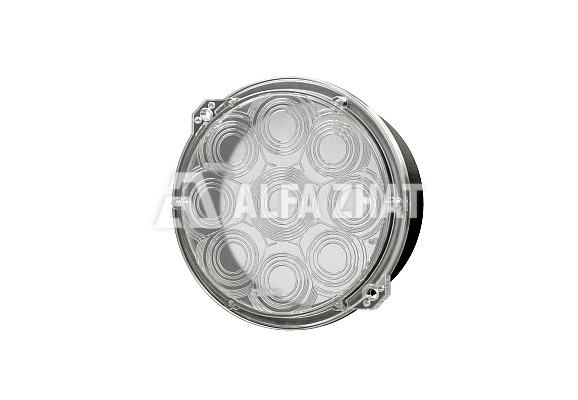

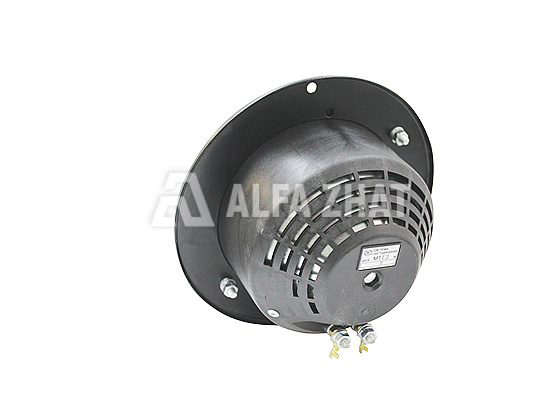

LED ground light signal system MKB NKMR. 676636.009-01 with lunar white lights for Underground provides organization of service and shunting operations.
| Volts alternating current | 10-12 V |
| Wattage, max | 25 W |
| Error-free running time, min | 50 000 hours |
| Service life, min | 20 years |
| Axial lighting force, min | 50 kd |
| Signal colour | lunar white lights |
| Diameter of the system | 160 mm |
| Drawing № | NKMR.676636.009-01 |
|
LED lunar white lights system MKB NKMR. 676636.009-01 |
1 pcs |
| Protective visor | 1 pcs |
| Product label | 1 pcs |
| Directions for use | 1 pcs per run of items |
LED lunar white lights system MKB NKMR. 676636.009-01 for ground light signal used in Underground Railroad.
Functionality: safety ensuring, organization of service and of shunting operations.
The system is an alternative to lens systems with electric incandescent lamps.
Ground light signal system advantages (in comparison to lens systems with electric incandescent lamps):
25 times longer service life
system crashes are ruled out with certainty – instead of one lamp bulb 9 independent of one another LEDs are used
rub-out signal occurrence circumstance when spotlight in reflection is ruled out with certainty
high impact property of scatterer glasses
The system is compatible with light-out relay OSHM-1 mode.
Given in technical conditions chromaticity coefficients are proved true by service of legal metrology (The All-Russian Research Institute for Optical and Physical Measurements Federal State Unitary Enterprise) measurement results.
LLC «Alfa-Zhat» offers to buy the LED lunar white lights systems by the lowest cost!
We provide the delivery of equipment around the Country and to the CIS region!
