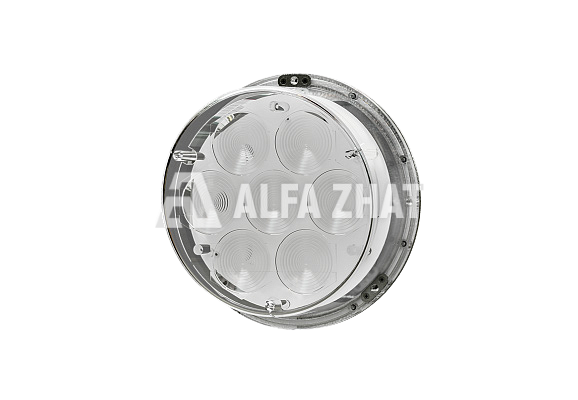

High colour light signal system for Underground Railroad; equipped with independent lunar-white signal colour light-emitting diode arrays. NKMR .676636.007-03. Diameter of the system is 200 mm.
| Volts alternating current | 10-12 V |
| Wattage, max | 25 W |
| Error-free running time, min | 50 000 hours |
| Service life, min | 20 years |
| Axial lighting force, min | 310 kd |
| Signal colour | lunar-white lights |
| Diameter of the system | 200 mm |
| Drawing № | NKMR.676636.007-03 |
LED high colour light signal system MMB NKMR .676636.007-03 with lunar-white signal colour for Underground Railroad.
Functionality: safety ensuring, organization of service and of shunting operations by means of lunar-white colour position light signals.
The system is an alternative to lens systems with electric incandescent lamps.
Package contents:
LED high colour light signal system MMB NKMR .676636.007-03 for Underground Railroad (lunar-white signal colour) -1 pcs
background shield – 1 pcs
protective visor – 1 pcs
product label – 1 pcs
directions for use – 1 pcs per run of items
High colour light signal system advantages (in comparison to lens systems with electric incandescent lamps):
25 times longer service life
system crashes are ruled out with certainty – instead of one lamp bulb dozens 10s of independent of one another light-emitting-diode arrays are used
rub-out signal occurrence circumstance by spotlight in reflection is ruled out with certainty
high impact property of scatterer glasses
The system is compatible with light-out relay OSHM2-46 mode.
Given in technical conditions chromaticity coefficients are proved true by service of legal metrology (The All-Russian Research Institute for Optical and Physical Measurements Federal State Unitary Enterprise) measurement results.
