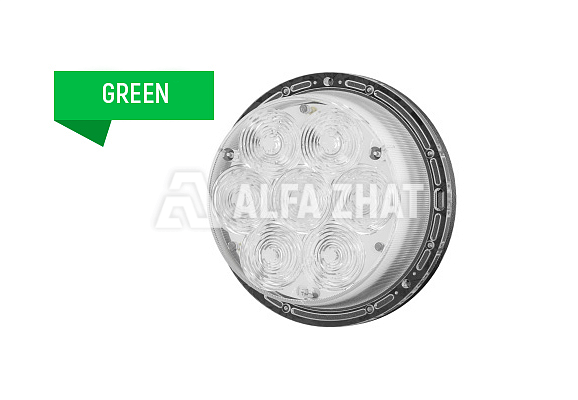

LED system MKz NKMR.676636.009-03 green (diameter 160 mm)

Power supply either from AC, frequency
50Hz or DC voltage

11,5 В

Current consumption of one LED at voltage
11,5В

from 0.9 to 1.5 A
(1.25 А)

The diameter of the output light hole (aperture)

160 mm

Light intensity along the optical axis, min

600 cd

Average time to failure, min

50 000 h

Operability in a moderate climate (U)
placement category 1, at temperatures

- 45°C to + 40°С

Upper value of air relative humidity
at t=25°С

100%

Product weight, max

2 kg

Drawing No.

НКМР.676636.009-03

LED system MKz NKMR.676636.009-03 green, pcs.

1

Label, pc

1

Operating Instruction for the system, pcs per lot

1
