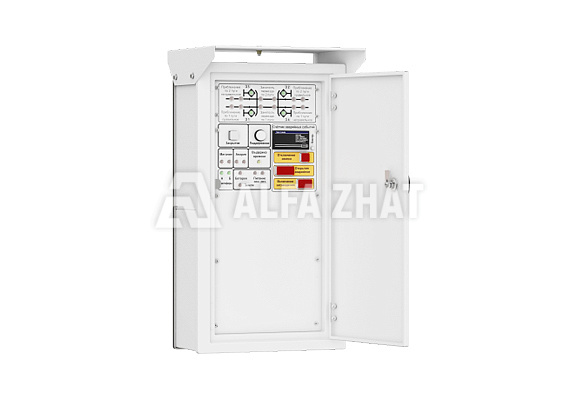

    Crossing signaling panel board ShchPS-ES-2 NKMR.468317.003 TS for railway crossings

    Crossing signaling panel board ShchPS-ES-2 NKMR.468317.003 TS for railway crossings

    Crossing signaling panel board ShchPS-ES-2 for double-track railway crossings Product drawing NKMR.468317.007. Overall dimensions of the product are 405x330x570 mm.
    Make request
    Leave an application
    Fill out this form and our manager
    will contact you in the shortest possible time
    and will notify you full details of the product.
    Product card
    FEATURES

    Power supply

    10.8 V to 16.8V

    Power consumption for PS circuits

    max 25 W

    Trouble free operation

    0.95 for 1000 hours of operation

    Working capacity at temperatures

    - 60°C to + 65°С

    Protection rating per GOST 14254-96

    IP54

    Climatic design variant acc.to GOST15150-69

    UHL 1

    Weight

    max. 25 kg

    Drawing No.

    НКМР.468317.007

    INC (inventory network classifier)

    3185642403

    Manufacturer’s warranty

    36 months

    Life span

    20 years minimum

    SCOPE OF SUPPLY

    Panel board ShPS-ES-1 NKMR.468317.006

    1 pc.

    Operation manual NKMR.468317.003 RE

    1 pc.

    Datasheet

    1 pc.

    Marker plate NKMR.754312.203

    1 pc.

    Removable panel NKMR.741218.014

    1 pc.

    Spare parts kit

    1 pc.

    DESCRIPTION
    Crossing signaling control panel ShchPS-ES-2 NKMR.468317.003 TS for double-track railway crossings, location on the side of the first track, without UZP covers.

    Functions of the crossing signaling board ShchPS-ES-2:
    • alarm control at double-track crossings with semi- and automatic gates
    • visual display of the train situation on the track sections before the crossing, which is under the control of the duty specialist
    • notification of the specialist supervising the crossing about the normal operation or the malfunctions of the crossing alarm
    • control and registration of the number of actuations of the emergency control buttons in emergency situations

    Advantages of ShchPS-ES-2 panel board:
    • the panel board is equipped with a counter for registering the number of pressing the required buttons (counter of emergency events), thanks to which it will continue to operate normally without re-sealing
    • there are no locking mechanisms and seals on the required buttons, so the devices can be controlled as quickly as possible in emergency situations
    • modern switches with dust-proof contacts are used, which allows using the panel without removing gauntlet or gloves
    • the panel uses spring-loaded terminals that simplify connection during installation and do not require maintenance
    • the panel uses reliable LED indicators designed for the service life of the product
    • TMP for the connection of panels into APS was developed and approved

    Alfa-ZhAT offers guaranteed lowest prices for ShchPS-ES-2 crossing signaling panel boards.
