ShchPS-UZP-MP crossing signaling and control board panel of the railway crossing gate device NKMR.468317.003 TS

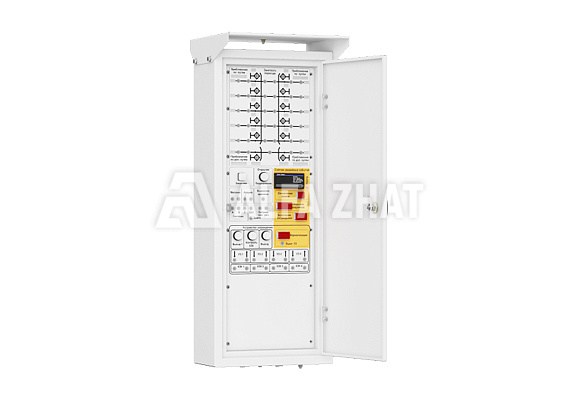

UZP crossing signaling and control panel board ShchPS-UZP-MP for multi-track railway crossings Product drawing NKMR.468317.009, SKMTR code 3185642402.

Make request

Product card

FEATURES

DC supply voltage	10.8 V to 16.8 V
AC supply voltage	10.8 V to 16.8 V
Power consumption for PS circuits	max 25 W
Power consumption for UZP circuits	max 7 W
Trouble free operation	0.95 for 1000 hours of operation
Working capacity at temperatures	- 60°C to + 65°С
Protection rating per GOST 14254-96	IP54
Climatic design variant acc.to GOST15150-69	UHL 1
Weight	max. 25 kg
Life span	20 years
INC (inventory network classifier)	3185642402
Drawing No.	НКМР.468317.009

SCOPE OF SUPPLY

Panel board ShchPS-UZP-MP NKMR.468317.009	1 pc.
Operation manual NKMR.468317.003 RE	1 pc.
Datasheet	1 pc.
Marker plate NKMR.754312.203	1 pc.
Spare parts kit	1 pc.

DESCRIPTION

The board panel for crossing signaling and controlling the barrier device for railway crossings ShchPS-UZP-MP NKMR.468317.003 TS combines all the functionality of ShchPS and UZP at a single-track railway crossing.
Location on any side of the tracks, 4 UZP covers.

Functions of the crossing signaling board ShchPS-UZP-MP:

alarm control at multi-track crossings with semi- and automatic gates
control over barrier devices for railway crossings (UZP), which prevent unauthorized entry of vehicles onto them
visual display of the train situation on the track sections before the crossing, which is under the control of the duty specialist
notification of the specialist supervising the crossing about the normal operation or the malfunctions of the crossing alarm and UZP
control and registration of the number of actuations of PS and UZP emergency control buttons in emergency situations

Advantages of the ShchPS-UZP-MP panel:

the panel board is equipped with a counter for registering the number of pressing the required buttons (counter of emergency events), thanks to which it will continue to operate normally without re-sealing
there are no locking mechanisms and seals on the required buttons, so the devices can be controlled as quickly as possible in emergency situations
modern switches with dust-proof contacts are used, which allows using the panel without removing gauntlet or gloves
the panel uses spring-loaded terminals that simplify connection during installation and do not require maintenance
the panel uses reliable LED indicators designed for the service life of the product
TMP for the connection of panels into APS was developed and approved

Alfa-Zhat guarantees the lowest price for the ShchPS-UZP-MP crossing signaling board.
