Two-phase street warning light signal SP2-1 NKMR.676658.031 TS (GOST R 52282-2004) with LED systems for single-track sections

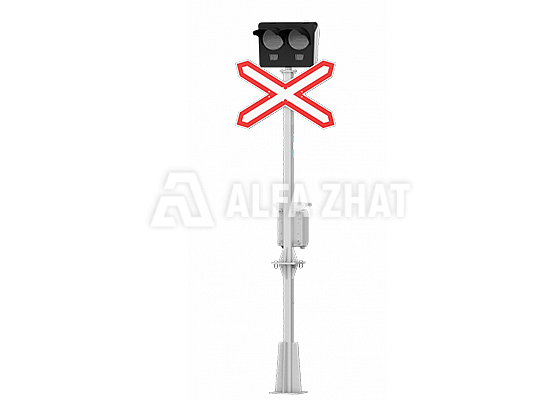

Drawing No. | 676658.031-02

Two-phase street warning light signal SP2-1 NKMR.676658.031 TS (GOST R 52282-2004) with LED systems for single-track sections

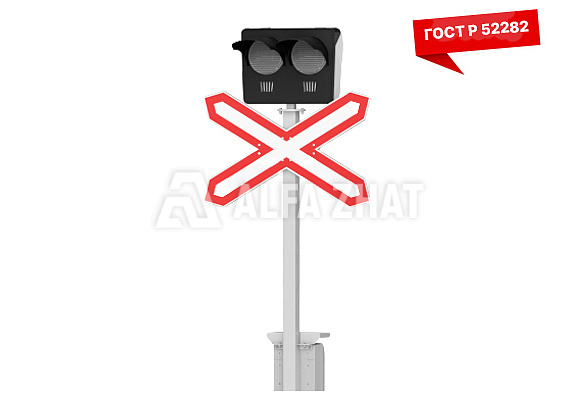

New two-phase street warning light signal SP2-1 for single-track sections, made using SMC and polymer materials. Equipped with two acoustic announcers. Product drawing NKMR.676658.031-02. Foundation included.

Make request

Product card

FEATURES

Capacity of LED system	max. 1.6 A
Capacity of acoustic announcers	max 9 W
Power of LED system	11.5 V
Power of acoustic announcers (AA)	10-28 V
LOS mean time between failures	min 50 000 hours
LOS axial lighting force	200 to 2000 cd
AA sound pressure along the axis	90 to 95 dBA
AA sound pressure at an angle of ±45˚	85 to 90 dBA
Protection degree as per GOST 14254-2012	IP54
Operating temperature	- 60°C to + 55°С
Relative air humidity	93±3%
Weight (net / gross)	Max. 79 kg, 100 kg
Dimensions of light unit (LxWxH)	93х61х62 cm
Dimensions of post (LxWxH)	192х26х26 cm
Dimensions of foundation (LxWxH)	130х31х31 cm
Inventory network classifier (INC) code	3185642497
Drawing No.	676658.031-02

SCOPE OF SUPPLY

Polymeric enclosure with 2 visors	1 pc.
Red LED system (LOS)	2 pcs.
Acoustic announcer (AA)	2 pcs.
Key lock 16908-04-00	1 pc.
Light signal galvanized post	1 pc.
Fastener for a lettered sign	1 pc.
Polymer shielding unit	1 pc.
Galvanized foundation NKMR.301318.038	1 pc.
Sign of single-line railway 1.3.1 (driving regulations)	1 pc.
Operation manual NKMR.676658.031-02 RE	1 pc.
Label NKMR.676658.031-03 ET	1 pc.
Installation drawing NKMR.676658.031 MCh	1 pc.

DESCRIPTION

Street warning light signals SP2-1 (two-phase) NKMR.676658.031 TS in a polymer enclosure is designed for single-track railway sections.

Function: warning of pedestrians and vehicles about the train coming to a guarded (controlled) or unguarded (uncontrolled) railroad crossing using light and sound signals.

SP2-1 street warning light signals meets the requirements of clause 8.1 of the standard STO RR 08.021-2015 “Railway automation and telemechanics. Procedure of product development, testing and launching into manufacture.

Service life of a light signal: 20 years.

Advantages of the new street warning light signal SP2-1:

The light signal is made in compliance with the requirements of GOST R 52282-2004 “Traffic control devices. Road light signals Types and basic parameters. General specifications. Testing methods.
LED optical systems make it possible to form the specified light distribution parameters (in accordance with GOST R 52282-2004) with a uniform light field inside the signal aperture and an anti-phantom effect. The use of fewer modern LED light sources allows minimizing energy consumption.
Availability of redundant sound sources (acoustic announcers) with sound pressure control.
Availability of a light signal control system that is fully compatible with existing automatic level crossing safety installation systems.
The structure of the body of the light unit and the shielding unit is made using polymer composite SMC materials.
The post, foundation and main components of the light signal have Gor Ts100 coating, which does not require painting during the entire service life. Road and letter signs - with a reflecting coating.
The light unit can be adjusted in 2 planes (adjustment unit).
The metal foundation is part of the light signal, which allows to quickly perform construction and installation work on commissioning, overhaul or modernization of railway crossings.
The use of a shielding unit on the post of the light signal makes it possible to exclude couplings and increases the safety of operation during flooding.
New SP2-1 street warning light signal with the maximum use of polymeric materials is a low-maintenance floor unit for light and sound crossing signaling, which allows maintenance to be carried out according to the actual state, and not according to the regulations.

Alfa-Zhat company guarantees the lowest price for SP2-1 light signal for railway crossings.

Delivery to any region of Russia and the CIS!
